For Volkswagen Tiguan 2012-2016

Select Black trim or Silver trim in the dropdown menu

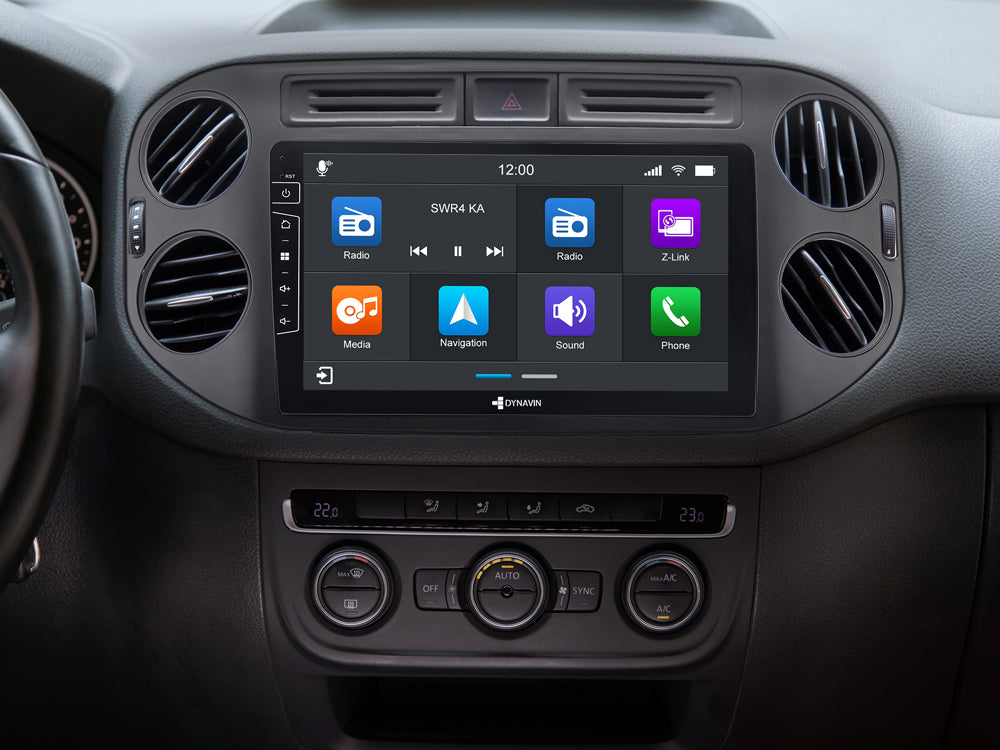

High-quality 9″/16:9 LCD capacitive touchscreen display (resolution 1280 x 720).
Android 11 OS with 4GB RAM
Select 64GB or 192GB app storage capacity
Apple CarPlay Wireless & Wired
Android Auto Wireless & Wired
Smartphone screen-mirroring
Google Play Store - Connection to the internet via WiFi module.
Integration of CANBUS solution (for air conditioning information, steering wheel operation and parking sensor).

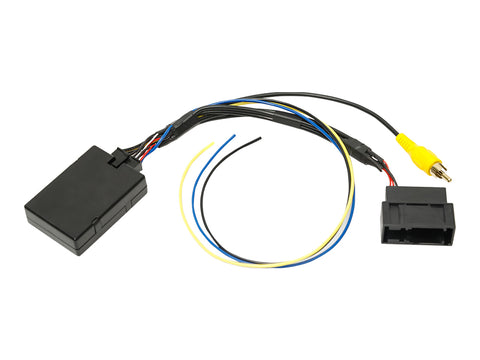

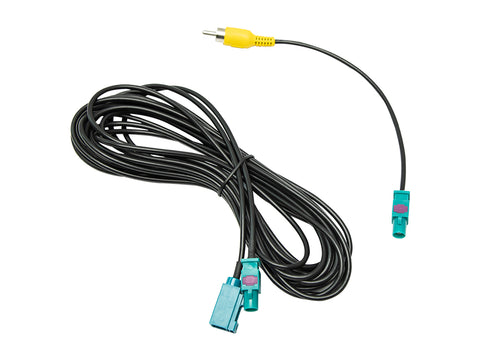

Reverse camera ready: compatible with all aftermarket reversing cameras (with RCA connector) and VW original cameras by optional adapter DVN-VCR-L (steering wheel does not move lines in reverse = no steering lock lines) or DVN-VCR-H (steering wheel moves lines in reverse = has steering lock lines).
BT for audio streaming and hands-free calls via any smartphone (Android, Apple, etc.). External microphone included.
Integrated Sound DSP processor with 16-band EQ and time correction.
AV input/output for aftermarket subs/amps etc.
We recommend this Flush Mount USB Extension for easy access to a USB port otherwise there are two 3ft USB extensions included to route to the glove compartment.
SiriusXM Satellite Radio compatible with SXV300 Tuner (plug-and-play) sold separately.
Pre-installed Dynaway GPS navigation software (maps for North America)
Customizable boot logo. Make any image your start up screen!
Periodic firmware updates available here
One year warranty through Dynavin North America - Fresno, CA

PARTS INCLUDED
INSTALL GUIDES

Install Video

FEATURES

Apple CarPlay

With Apple CarPlay, iPhone users have an incredibly intuitive solution on board to make calls, use maps, listen to music and use messages with just a word or the touch of a button. You can enjoy Spotify, internet radio, or podcasts while still concentrating on the road. Dynavin 9 supports wireless and wired Apple CarPlay and screen-mirroring.

For a list of compatible Apple CarPlay apps, visit: https://www.apple.com/ios/carplay/.

Android Auto

Android Auto is a mobile app made by Google that connects your Android phone to your car's touchscreen display allowing you to use your Android phone while driving without having to pick it up. With Android Auto, Android users have an incredibly intuitive solution to make calls, use maps, listen to music, and use messages with just a word or touch of a button. Dynavin 9 supports wired Android Auto and screen-mirroring.

For Android Auto apps, visit: https://www.android.com/auto/.

Fast Boot

The Dynavin 9 fast boot features allows the radio system to boot in 3 seconds so users can enjoy their music and use the system quickly.

Google Play Store

The Google Play Store allows users to install Android apps via WiFi connection.

Customizable Start Screen (Boot Logo)

With our own DynOS operating system, you have the option of changing the picture on the start screen and the logos of the stored radio stations.

Steering Wheel Control Integration

The Dynavin system communicates perfectly with the multifunction steering wheel of your vehicle. This upgrade still allows you to control volume, telephone, track search (forward / backward) and other functions as usual. When a smartphone is connected to the system, you can even activate voice control such as “Siri” or “Google Assistant” via the steering wheel.

Backup Camera

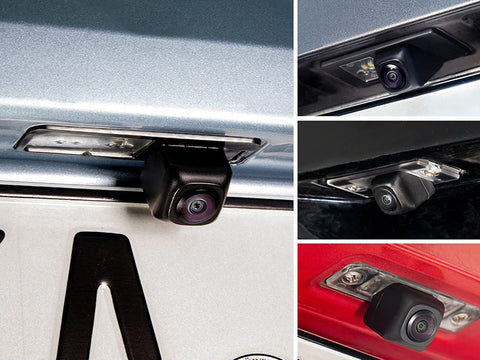

Integrates with the OEM backup camera with the Dynavin camera adapter (sold separately): DVN-VCR-L (no steering lock lines from VW original cameras) or DVN-VCR-H (with steering lock lines from VW original cameras). Also compatible with aftermarket cameras.

PDC Integration (if equipped)

Retains OEM parking sensors (if equipped). If your vehicle is equipped with factory parking sensors, this functionality is retained when upgrading to the Dynavin system. The visual parking lines assist the driver in addition to the parking sensors which detect obstacles in front of or behind the vehicle. Within the detection field, the position of obstacles is shown using a graphic representation in the display and alerts the driver when parking. In addition to the front and rear sensors, the four side sensors are also shown on the display.

Multifunction Display

The multi-function display (MFA) in the instrument cluster is linked to the Dynavin system and can display radio station names, ID3 tag from media player, caller information, navigation information and the compass (The MFD's navigation menu needs to be activated if you don't have it in your vehicle).

Compatible with Dynaudio Sound System

The Dynavin 9 platform is compatible with the original VW Dynaudio sound system!

SiriusXM Satellite Radio Ready

Add the SiriusXM Connect Vehicle tuner (SiriusXM tuner sold separately) to listen to your SiriusXM subscription anytime, anywhere.

Dynaway GPS Navigation Software (pre-installed maps for North America)

No cell service? No problem! Always know where you are with GPS navigation with 3D view, online TMC* and TTS. Dynaway guarantees one free map update within 30 days of first use. Purchase and download the latest map data from flex.dynavin.com. 3 or 7 years of unlimited map data updates available for purchase at flex.dynavin.com. Additional map regions are also available for purchase.

Equalizer Presets

Extensive sound adjustment settings to get the best out of your sound system and adjust to your preference. The built-in 16-band parametric EQ allows separate adjustment for the front and rear channels with professional-level precision.

Source Level Setting

In the source menu you can adjust the different volume levels for the various audio sources to your preference.

Fader and Balance

Simply drag the crosshairs on the touchscreen to the desired position on the illustration of the vehicle interior to set the fader balance and time correction.

SPECIFICATIONS

General

Android 11 OS with 4GB RAM and 64GB or 192GB storage capacity
Supports AHD backup cameras
Supports Dynavin 9 Heads-up Display (sold separately)
Output power: 4 x 45 W high-power amplifiers
3 pre-outs (3 V, front / rear / subwoofer)
CANBUS integration
Menu language: English / German / French / Spanish / Portuguese / Dutch / Greek / Italian / Polish / Danish
Camera connection & built-in controls for Dynavision multi-view cameras
Camera guidelines setting
Rear view camera display Automatic / Fast boot up
16-band EQ
Automatic dimmer
Firmware upgradable
Compatible with start-stop system

Display

Display: 9-inch (LVDS)
Resolution 1280 × 720 pixels (RGB)
Capacitive touch screen
Anti-reflective display
Working system: TFT active matrix
Active area: 196.608 (H) x 114.15 (V) mm

Z-Link

Wireless and wired Apple CarPlay
Wired Android Auto
Smartphone screen-mirroring

Integrated BT

Integrated BT module
Included a compact digital dual microphone with a unique noise-canceling algorithm that ensures excellent call voice quality
Specification standard: 3.0 and 2.1 + EDR
-95dBm sensitivity, excellent anti-interference performance
Support low power scan function
PBAP phone book synchronization with 1000 entries
Hands-free calling with HFP
Music streaming: A2DP (Advanced Audio Distribution Profile) compatible
Individual profile connection: hands-free function and music streaming
Phone book: Automatic transfer of the phone book
Dashboard display support for caller alerts
Support for saving connection history from multiple mobile phones
Device name display
Call history: dialed number / received calls / missed calls
Voice volume adjustment: adjustable for incoming and outgoing calls
Adjustable microphone gain
GSM signal strength display
Display of the battery level

USB

USB specification: USB 2.0, support fast charging
Audio playback (supported formats: APE/FLAC/M4A/MP3/WMA/WAV)
Video playback (supported formats: MPEG-4/AVI/FLV/MPEG/MPG/DAT/VOB/MKV)
Image browsing (supported formats: JPG/BMP/PNG/JPEG)
Playback Mode: Shuffle / Single Loop / All Loop / Folder Loop
Image can be set as start screen
Sync Song Album Pictures
Movable progress bar
Video playback speed x2/ x4
Save Playback Progress
Support for dashboard display of songs/composers
Support steering wheel to control song/volume level up/down
Search by file/folder name
Supports up to 256GB USB storage device

Sound tuning

Maximum output power: 4 x 45 W
Adjustable subwoofer level
Subwoofer, bass, middle, treble phase selectable
Equalizer: Pop, Rock, Classic
16-band parametric equalizer
faders and balance
Digital Time Correction
Adjustable volume reduction when parking
Maximum switch-on volume adjustable

Radio

FM Frequency Range: 87.5-108.0MHz
AM Frequency Range: 530-1710KHZ
FM Utility Sensitivity: 5-6db
FM Stop Sensitivity: 22db
AM Stop Sensitivity: 21db
With left and right stereo channels
Signal to noise ratio: 56db
Manual station storage for 15 stations
RDS functions: AF, TA, station text
Automatic channel search function
High-cut high-frequency attenuation function
Support for changing FM/AM memory space images
Optional switching on and off of the radio antenna

GPS Navigation Software

Preinstalled Dynaway navigation software
Maps: North America
Online map update via flex.dynavin.com
Free map update within 30 days after first use

GPS

GPS antenna included
GPS reception frequency 1,575.42 ± 1 MHz
GPS reception sensitivity -165 dB max
Positioning accuracy: 10 m, 2D RMS
Data update rate: 1HZ
Reacquisition time: 0.1 s on average

A2DP

Sync BT music to cellphone
Display song title/lyrics/composer/singer
Steering wheel can control song/volume up/down
Song titles/lyrics can be displayed on the dashboard
