*NEW!* Dynavin 8 D8-MST2015L Radio Navigation System for Ford Mustang 2015-2022 BASE MODEL
For FORD MUSTANG 2015-2022 (S550) BASE MODEL
Replaces the Base Model 4" factory screen with a 10" touchscreen!
Only a few left!
- Plug and Play!
- Premium 10.1" / 16:9 high resolution capacitive touchscreen (1280 x 720 pixels)
- Android OS. Choose between 32gb or 160gb app storage capacity
- Wireless Apple CarPlay
- Wireless* and wired Android Auto
- Smartphone screen-mirroring
- Google Play Store preinstalled. Connects to the internet via built-in WiFi module.
- Supports steering wheel controls, air conditioning information on the screen, outside temperature on the display and the factory sound system. Integrated with parking sensors (if equipped).
- Bluetooth for audio streaming and hands-free phone calls via smartphone (Android/Apple). External microphone included.
- Maintains or improves sound quality! High quality sound processor compatible with all audio systems both factory and aftermarket including DSP. 16-band EQ, time correction, and more. FM RDS tuner with DSP noise-masking and 15 preset stations.
- AV input/output for aftermarket subs/amps, etc.
- Multimedia player by USB connectivity
- Integrates with the factory camera or with universal aftermarket backup/front cameras (factory camera adapter included)
- Replaces Sync (if-equipped) with Apple's Siri or Google Assistant (depending on your smartphone). Compatible with or without Sync.
- SiriusXM compatible with SXV300 Tuner (plug-and-play) sold separately (does not integrate with factory SiriusXM).
- Customizable boot logo. Make any image your start up screen!
- Built-in iGO Primo GPS navigation software with 3D view and premium POI
- Periodic firmware updates available here
- One year warranty through Dynavin North America - Fresno, CA
Click here for install guides

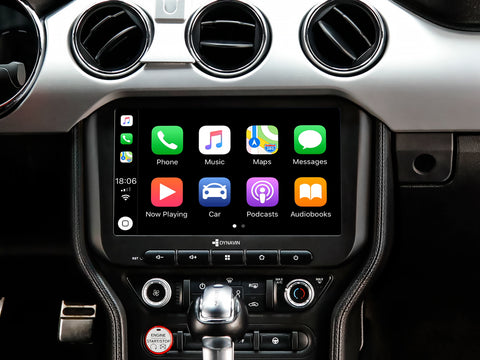

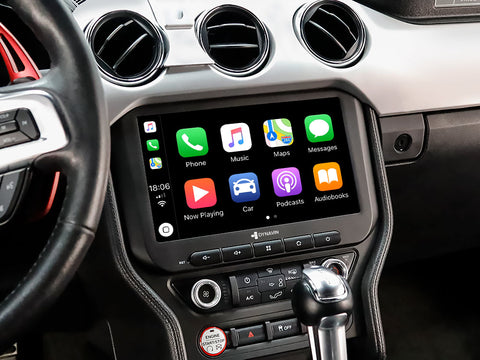

Apple CarPlay and Android Auto Compatible
With Apple CarPlay, iPhone users have an incredibly intuitive solution on board to make calls, use maps, listen to music and use messages with just a word or the touch of a button. You can enjoy Spotify, internet radio, or podcasts while still concentrating on the road. Dynavin 8 supports wireless Apple CarPlay and screen-mirroring.
For a list of compatible Apple CarPlay apps, visit: https://www.apple.com/ios/carplay/.

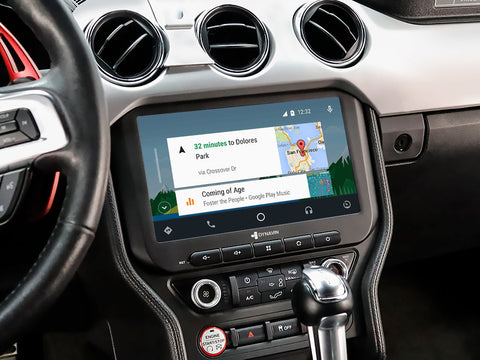

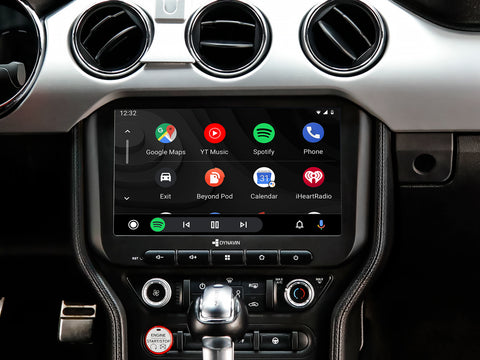

Android Auto is a mobile app made by Google that connects your Android phone to your car's touchscreen display allowing you to use your Android phone while driving without having to pick it up. With Android Auto, Android users have an incredibly intuitive solution to make calls, use maps, listen to music, and use messages with just a word or touch of a button. Dynavin 8 supports Android Auto and screen-mirroring.
For Android Auto apps, visit: https://www.android.com/auto/.
The Dynavin 8 fast boot features allows the radio system to boot in 3 seconds so users can enjoy their music and use the system quickly.

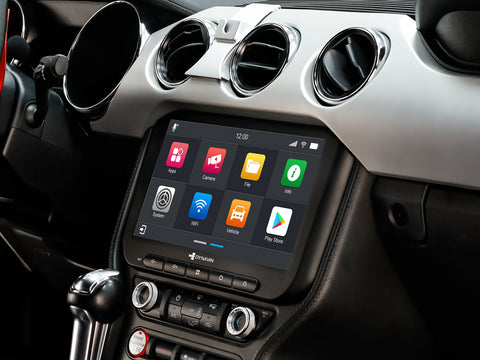

Google Play Store
The Google Play Store allows users to install Android apps via WiFi connection.
Steering Wheel Control Integration
The Dynavin system communicates perfectly with the multifunction steering wheel of your vehicle. This upgrade still allows you to control volume, telephone, track search (forward / backward) and other functions as usual. When a smartphone is connected to the system, you can even activate voice control such as “Siri” or “Google Assistant” via the steering wheel.

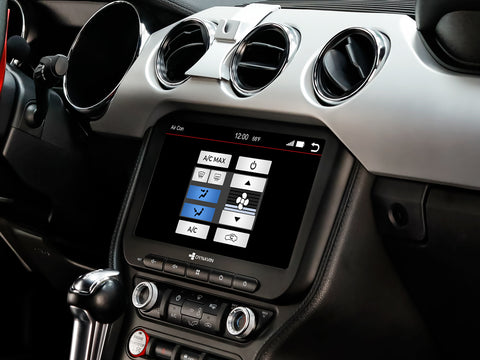

Climate Control Display
Dynavin 8 gives you visual feedback for the driver and passenger temperatures, air conditioning status, heated seat status, air vents and more. You can also adjust fan direction through the air conditioning menu in cars that support this feature.
The Dynavin 8 integrates with your Mustang's factory reverse camera (if equipped). You can see the dynamic guide lines in the reverse camera mode. Or add an aftermarket camera!
Factory HVAC Retention
The Dynavin Mustang radio retains the original HVAC buttons.
SiriusXM Satellite Radio Ready
The integrated Bluetooth module enables the wireless connection of a cell phone for hands-free communication. A very intuitive user interface makes it extremely easy to use and you can use the on-screen keyboard to search for contacts. Bluetooth also enables audio streaming from the phone.
Customizable Start Screen (Boot Logo)
With our own DynOS operating system, you have the option of changing the picture on the start screen and the logos of the stored radio stations.

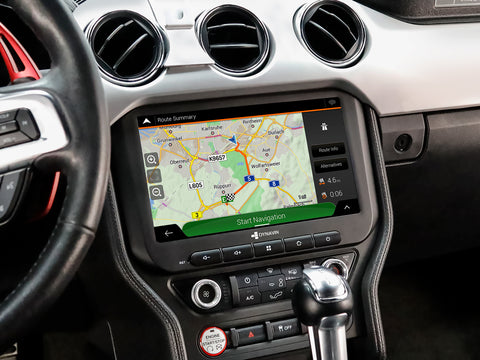

GPS Navigation with iGO Primo- included (North America maps)
Navigation software is preinstalled on the Dynavin 8 with 3D view, TTS, and premium POI.
The Dynavin 8 offers extensive sound adjustment options to get the best out of your Mustang's sound system and to adjust the sound to your preference. The built-in 16-band parametric EQ allows separate adjustment for the front and rear channels with professional-level precision.
Source Level Setting
In the source menu you can adjust the different volume levels for the various audio sources to your preference.

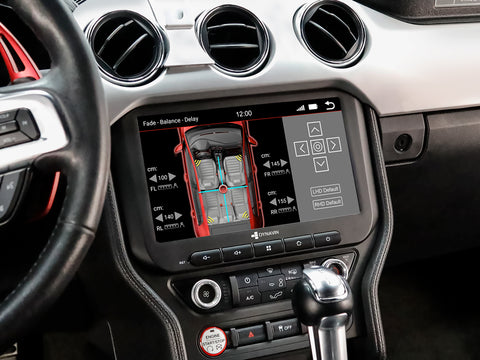

Fader and Balance
Simply drag the crosshairs on the touchscreen to the desired position on the illustration of the vehicle interior to set the fader balance and time correction.
- Maximum output power: 4 x 45 W
- Adjustable subwoofer level
- Subwoofer, Bass, Middle, Treble phase selectable
- Equalizer Presets: Pop, Rock, Classical
- 16-band parametric equalizer
- Fader and balance
- Digital time correction
- FM frequency range: 87.5 – 108.0 MHz
- AM frequency range: 530 – 1710 KHZ
- FM Utility Sensitivity: 5-6 db
- FM Stop Sensitivity: 22 db
- AM stop sensitivity: 21 db
- With left and right stereo channels
- Signal to noise ratio: 56 db
- Manual station storage for 15 stations
- RDS functions: AF, TA, broadcast text
- Automatic station tracking function
- High Cut high frequency attenuation function
- Support for changing FM/AM memory station pictures
- Optional radio antenna power on/off
- Maps: North America
- Menu languages: 28 languages
- Advanced address search
- Postal/zip code search
- Free search
- Search with word pieces
- Extended POI functions
- Smart routes: use of historical traffic data
- Fast route calculation
- Extended route planning
- Map display: 2D top view, 2D north orientation, 3D
- 3D city maps: 3D building views
- Display of elevation profiles
- 3D motorway junctions: 3D display of motorway junctions
- Tunnel mode
- Highway mode
- Navi Mix mode
- Online Map Update via www.naviextras.com
- Free map update after the first registration on naviextras.com
- GPS antenna included
- GPS reception frequency 1,575.42 ± 1 MHz
- GPS reception sensitivity -165 dB max
- Positioning accuracy: 10 m, 2D RMS
- Data update rate: 1 HZ
- Recapture time: 0.1 s on average
- BT audio streaming from cell phone
- Display song title/lyrics/composer/vocalist
- Steering wheel can control up/down song/volume level
- Song title/lyrics can be displayed on the dashboard
