NEW! Dynavin 9 D9-44 Plus Radio Navigation System for Ford Focus 2012-2018

NEW! Dynavin 9 D9-44 Plus Radio Navigation System for Ford Focus 2012-2018

$ 699.99
show more images...

FOR FORD FOCUS 2012-2018 (not compatible with Sony Audio system)

  • Plug and Play!
  • High-quality 9″/16:9 LCD capacitive touchscreen display (resolution 1280 x 720)
  • Android 11 OS with 4GB RAM
  • Select 64GB or 192GB app storage capacity
  • Apple CarPlay Wireless & Wired
  • Android Auto Wireless (Beta) & Wired
  • Smartphone screen-mirroring
  • Google Play Store preinstalled. Connects to the internet via built-in WiFi module.
  • Integration of the CANBUS solution for steering wheel controls
  • Bluetooth for audio streaming and hands-free calls via any smartphone (Android, Apple, etc.). External microphone included.
  • FM RDS TMC tuner with DSP noise masking and 15 preset stations
  • Integrated sound DSP processor with 16-band EQ and time correction.
  • AV input/output for aftermarket subs/amps, etc.
  • Multimedia player via USB connection.
  • Reverse/backup and front camera ready; compatible with most universal backup cameras (see backup cameras sold separately)
  • Pre-installed Dynaway GPS navigation software (maps for North America)
  • Periodic firmware updates available here
  • One year warranty through Dynavin North America - Fresno, CA

FEATURES

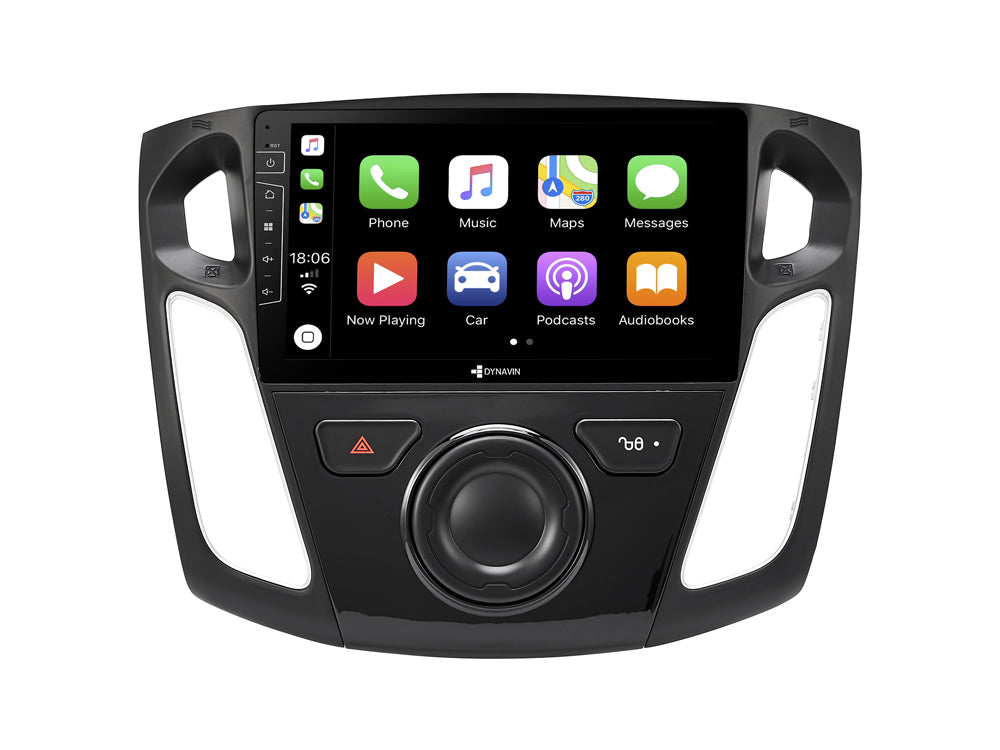

Apple CarPlay

With Apple CarPlay, iPhone users have an incredibly intuitive solution on board to make calls, use maps, listen to music and use messages with just a word or the touch of a button. You can enjoy Spotify, internet radio, or podcasts while still concentrating on the road. Dynavin 9 supports both wired and wireless Apple CarPlay and wired and wireless screen-mirroring.

For a list of compatible Apple CarPlay apps, visit: https://www.apple.com/ios/carplay/

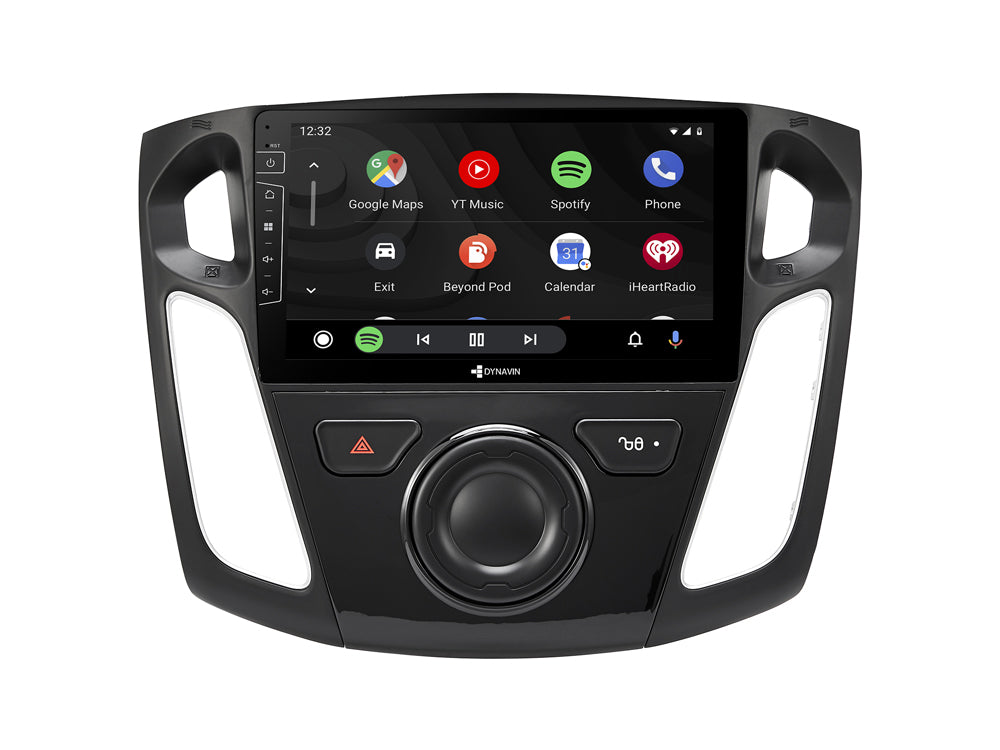

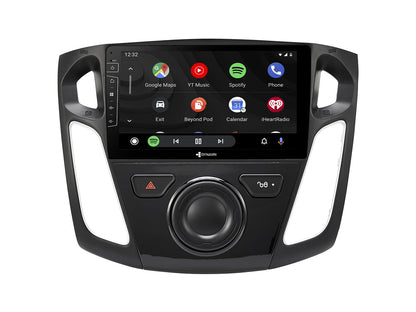

Android Auto

Android Auto is a mobile app made by Google that connects your Android phone to your car's touchscreen display allowing you to use your Android phone while driving without having to pick it up. With Android Auto, Android users have an incredibly intuitive solution to make calls, use maps, listen to music, and use messages with just a word or touch of a button. Dynavin 9 supports wired Android Auto and wired and wireless Android screen-mirroring.

For Android Auto apps, visit: https://www.android.com/auto/

Fast Boot

The Dynavin 9 fast boot features allows the radio system to boot in 3 seconds so users can enjoy their music and use the system quickly.

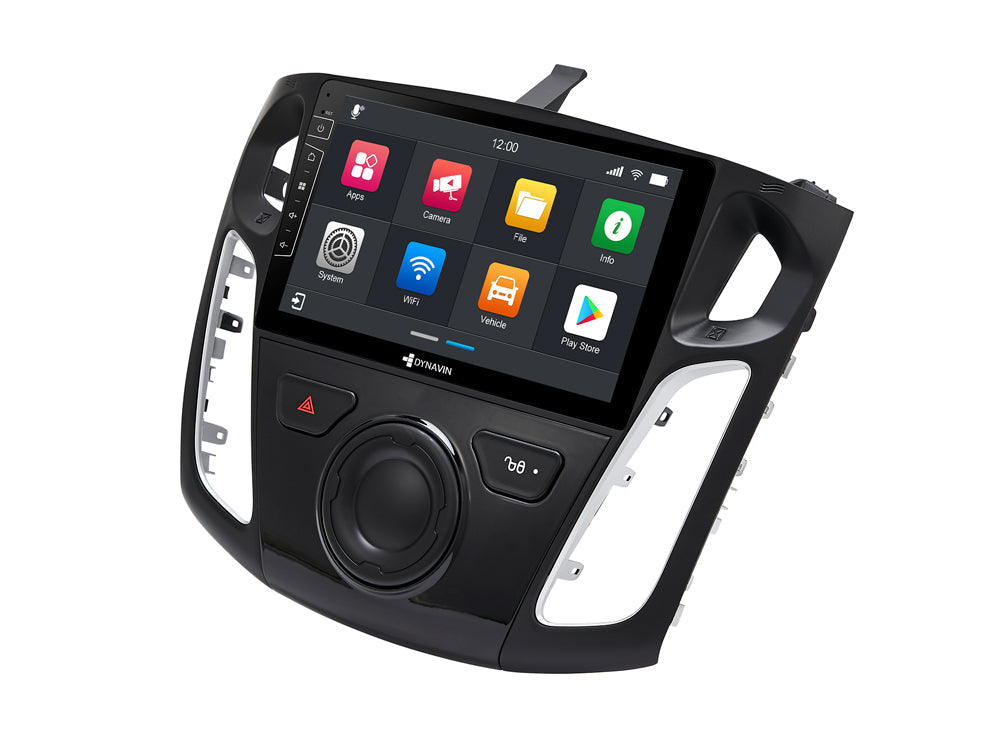

Google Play Store

The Google Play Store allows users to install Android apps via WiFi connection.

Customizable Start Screen (Boot Logo)

With our own DynOS operating system, you have the option of changing the picture on the start screen and the logos of the stored radio stations.


Steering Wheel Control Integration

The Dynavin system communicates perfectly with the multifunction steering wheel of your vehicle. This upgrade still allows you to control volume, telephone, track search (forward / backward) and other functions as usual. When a smartphone is connected to the system, you can even activate voice control such as “Siri” or “Google Assistant” via the steering wheel.

Backup Camera

Further upgrade your car with an aftermarket camera! The Dynavin 9 is backup and/or front camera ready!

SiriusXM Satellite Radio Ready

Add the SiriusXM Connect Vehicle tuner (SiriusXM tuner sold separately) to listen to your SiriusXM subscription anytime, anywhere.

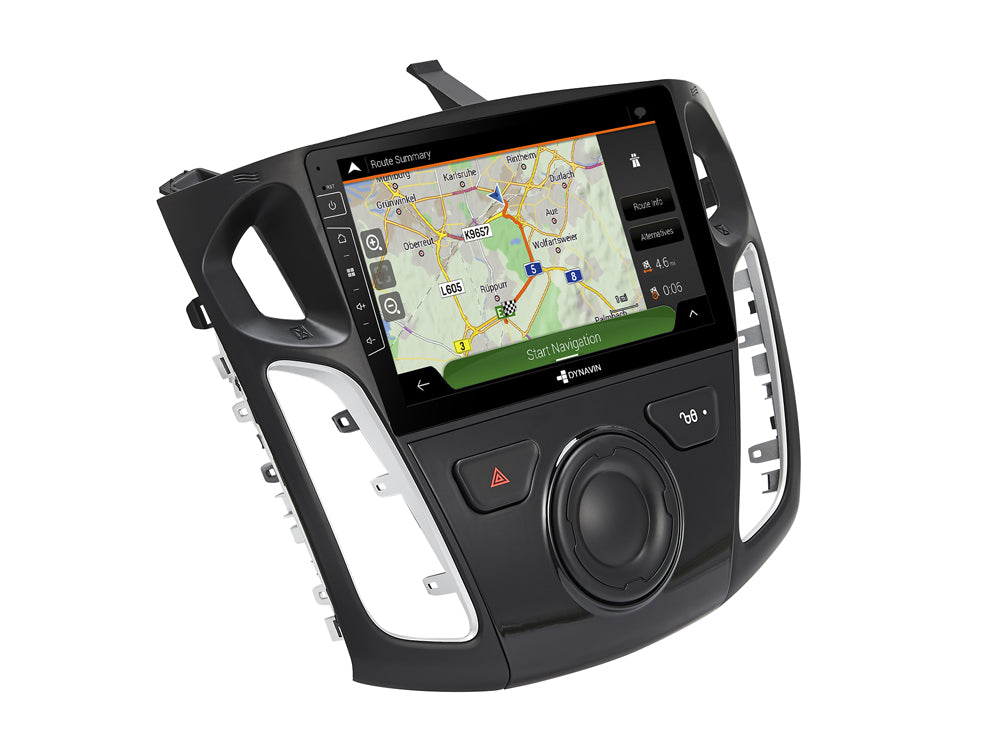

Dynaway GPS Navigation Software (pre-installed maps for North America)

No cell service? No problem! Always know where you are with GPS navigation with 3D view, online TMC* and TTS. Dynaway guarantees one free map update within 30 days of first use. Purchase and download the latest map data from flex.dynavin.com. 3 or 7 years of unlimited map data updates available for purchase at flex.dynavin.com. Additional map regions are also available for purchase.

Equalizer Presets

Extensive sound adjustment settings to get the best out of your sound system and adjust to your preference. The built-in 16-band parametric EQ allows separate adjustment for the front and rear channels with professional-level precision.

Source Level Setting

In the source menu you can adjust the different volume levels for the various audio sources to your preference.

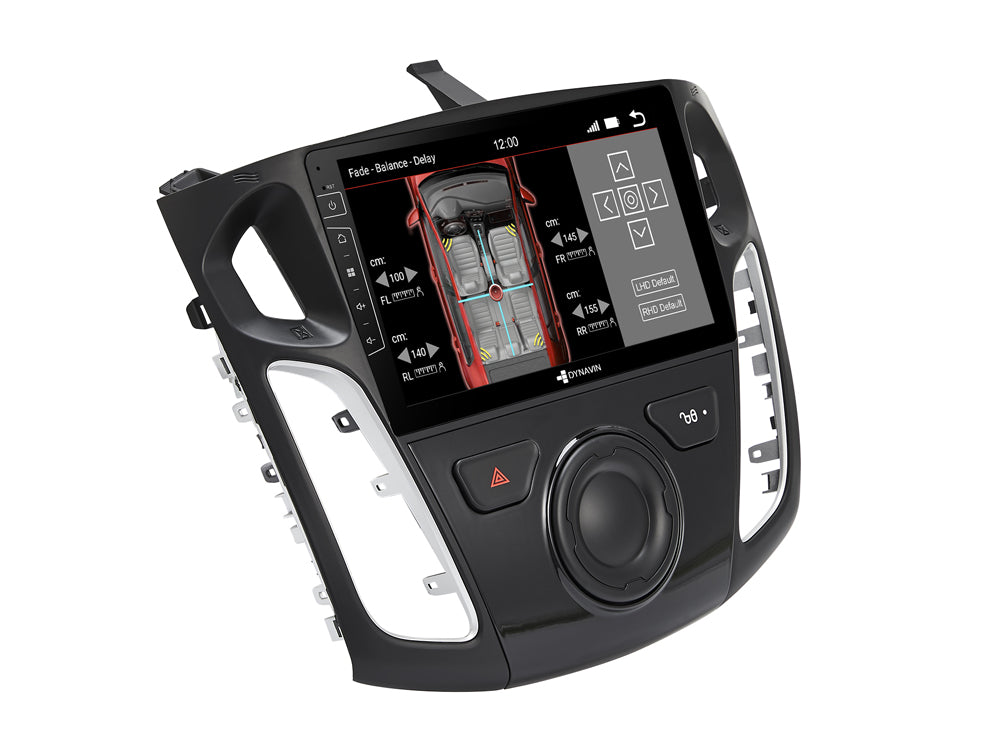

Fader and Balance

Simply drag the crosshairs on the touchscreen to the desired position on the illustration of the vehicle interior to set the fader balance and time correction.

SPECIFICATIONS

General

  • Android 11 OS with 4GB RAM and 64GB or 192GB storage capacity
  • Supports AHD backup cameras
  • Supports Dynavin 9 Heads-up Display (sold separately)
  • Output power: 4 x 45 W high-power amplifiers
  • 3 pre-outs (3 V, front / rear / subwoofer)
  • CANBUS integration
  • Menu language: English / German / French / Spanish / Portuguese / Dutch / Greek / Italian / Polish / Danish
  • Camera connection & built-in controls for Dynavision multi-view cameras
  • Camera guidelines setting
  • Rear view camera display Automatic / Fast boot up
  • 16-band EQ
  • Automatic dimmer
  • Firmware upgradable
  • Compatible with start-stop system

Display

  • Display: 9-inch (LVDS)
  • Resolution 1280 x 720 pixels (RGB)
  • Capacitive touch screen
  • Anti-reflective display
  • Working system: TFT active matrix
  • Active area: 196.608 (H) x 114.15 (V) mm

Z-Link

  • Wireless and wired Apple CarPlay
  • Wired Android Auto
  • Smartphone screen-mirroring

Integrated BT

  • Integrated BT module
  • Included a compact digital dual microphone with a unique noise-canceling algorithm that ensures excellent call voice quality
  • Specification standard: 3.0 and 2.1 + EDR
  • -95dBm sensitivity, excellent anti-interference performance
  • Support low power scan function
  • PBAP phone book synchronization with 1000 entries
  • Hands-free calling with HFP
  • Music streaming: A2DP (Advanced Audio Distribution Profile) compatible
  • Individual profile connection: hands-free function and music streaming
  • Phone book: Automatic transfer of the phone book
  • Dashboard display support for caller alerts
  • Support for saving connection history from multiple mobile phones
  • Device name display
  • Call history: dialed number / received calls / missed calls
  • Voice volume adjustment: adjustable for incoming and outgoing calls
  • Adjustable microphone gain
  • GSM signal strength display
  • Display of the battery level

USB

  • USB specification: USB 2.0, support fast charging
  • Audio playback (supported formats: APE/FLAC/M4A/MP3/WMA/WAV)
  • Video playback (supported formats: MPEG-4/AVI/FLV/MPEG/MPG/DAT/VOB/MKV)
  • Image browsing (supported formats: JPG/BMP/PNG/JPEG)
  • Playback Mode: Shuffle / Single Loop / All Loop / Folder Loop
  • Image can be set as start screen
  • Sync Song Album Pictures
  • Movable progress bar
  • Video playback speed x2/ x4
  • Save Playback Progress
  • Support for dashboard display of songs/composers
  • Support steering wheel to control song/volume level up/down
  • Search by file/folder name
  • Supports up to 256GB USB storage device

Sound tuning

  • Maximum output power: 4 x 45 W
  • Adjustable subwoofer level
  • Subwoofer, bass, middle, treble phase selectable
  • Equalizer: Pop, Rock, Classic
  • 16-band parametric equalizer
  • faders and balance
  • Digital Time Correction
  • Adjustable volume reduction when parking
  • Maximum switch-on volume adjustable

Radio

  • FM Frequency Range: 87.5-108.0MHz
  • AM Frequency Range: 530-1710KHZ
  • FM Utility Sensitivity: 5-6db
  • FM Stop Sensitivity: 22db
  • AM Stop Sensitivity: 21db
  • With left and right stereo channels
  • Signal to noise ratio: 56db
  • Manual station storage for 15 stations
  • RDS functions: AF, TA, station text
  • Automatic channel search function
  • High-cut high-frequency attenuation function
  • Support for changing FM/AM memory space images
  • Optional switching on and off of the radio antenna

GPS Navigation Software

  • Preinstalled Dynaway navigation software
  • Maps: North America
  • Online map update via flex.dynavin.com
  • Free map update within 30 days after first use

GPS

  • GPS antenna included
  • GPS reception frequency 1,575.42 ± 1 MHz
  • GPS reception sensitivity -165 dB max
  • Positioning accuracy: 10 m, 2D RMS
  • Data update rate: 1HZ
  • Reacquisition time: 0.1 s on average

A2DP

  • Sync BT music to cellphone
  • Display song title/lyrics/composer/singer
  • Steering wheel can control song/volume up/down
  • Song titles/lyrics can be displayed on the dashboard
