NEW! Dynavin 9 D9-MST2010 Plus Radio Navigation System for Ford Mustang 2010-2014

NEW! Dynavin 9 D9-MST2010 Plus Radio Navigation System for Ford Mustang 2010-2014

$ 799.99
show more images...

For FORD MUSTANG 2010-2014 (S197 II)

Compatible with all audio systems: base model, Shaker 500, Shaker 1000 (with or without factory navigation). Supports aftermarket amps and subs!

  • Plug and Play!
  • High-quality 9″/16:9 LCD capacitive touchscreen display (resolution 1280 x 720)
  • Android 11 OS with 4GB RAM
  • Select 64GB or 192GB app storage capacity
  • Apple CarPlay Wireless & Wired
  • Android Auto Wireless (Beta) & Wired
  • Smartphone screen-mirroring
  • Compatible with all Mustang 2010-2014 audio systems. Includes wiring for all configurations.
  • Compatible with all AC systems: standard and dual zone climate control. (Dual zone adjusted through the touchscreen via HVAC menu).
  • Compatible with heated seats and non-heated seat cars. Includes lower left and right buttons: 2 black button covers for non-heated seat cars and 2 buttons for heated seats cars if equipped.
  • Compatible with models with or without factory navigation.
  • Google Play Store preinstalled. Connects to the internet via built-in WiFi module.
  • Supports steering wheel controls, air conditioning information on the screen, outside temperature on the display and the factory sound system. Integrates with parking sensors (if equipped).
  • Bluetooth for audio streaming and hands-free phone calls via smartphone (Android/Apple). External microphone included.
  • Maintains or improves sound quality! High quality sound processor compatible with all audio systems both factory and aftermarket including DSP. 16-band EQ, time correction, and more. FM RDS tuner with DSP noise-masking and 15 preset stations.
  • No factory USB? No problem! We recommend the Flush Mount USB Extension for easy access otherwise there are two 3ft USB extensions included to route to the glove compartment.
  • AV input/output for aftermarket subs/amps, etc.
  • Multimedia player by USB connectivity
  • Is able to integrate with the factory camera (factory camera adapter and parts not included, click here for details) or works with aftermarket cameras (aftermarket camera RCA harness included).
  • Replaces Sync (if-equipped) with Apple's Siri or Google Assistant (depending on your smartphone). Compatible with or without Sync.
  • Dynaperformance's Carbon Fiber Trim Kit made for this radio available now! (Click here to purchase from DynaPerformance). (We are not affiliated with DynaPerformance.)
  • SiriusXM Satellite Radio compatible with SXV300 Tuner (plug-and-play) sold separately. Tip: Use the "Maestro HRN-ANT-SAT1 FAKRA to Aftermarket SMB Satellite Radio Antenna Adapter" with the SXV300 tuner to use your car's factory satellite radio antenna (if equipped). Does not integrate with the car's factory satellite tuner only the factory satellite antenna with the Maestro adapter.
  • Customizable boot logo. Make any image your start up screen!
  • Pre-installed Dynaway GPS navigation software (maps for North America)
  • Periodic firmware updates available here
  • One year warranty through Dynavin North America - Fresno, CA

INSTALL GUIDES

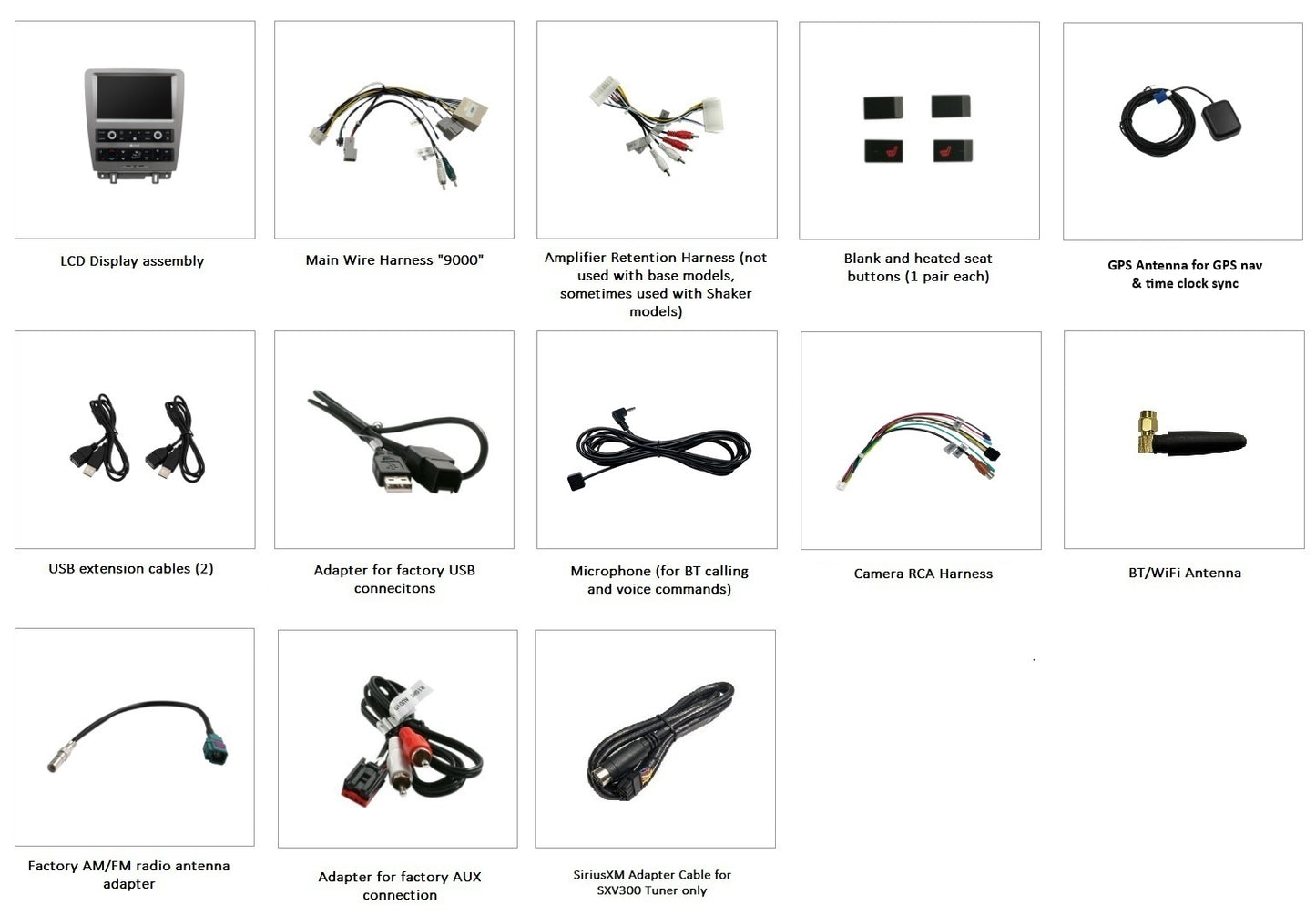

PARTS INCLUDED

FEATURES

Apple CarPlay

With Apple CarPlay, iPhone users have an incredibly intuitive solution on board to make calls, use maps, listen to music and use messages with just a word or the touch of a button. You can enjoy Spotify, internet radio, or podcasts while still concentrating on the road. Dynavin 9 supports wireless and wired Apple CarPlay and screen-mirroring.

For a list of compatible Apple CarPlay apps, visit: https://www.apple.com/ios/carplay/

Android Auto

Android Auto is a mobile app made by Google that connects your Android phone to your car's touchscreen display allowing you to use your Android phone while driving without having to pick it up. With Android Auto, Android users have an incredibly intuitive solution to make calls, use maps, listen to music, and use messages with just a word or touch of a button. Dynavin 9 supports wired Android Auto and Android screen-mirroring.

For Android Auto apps, visit: https://www.android.com/auto/

Fast Boot

The Dynavin 9 fast boot features allows the radio system to boot in 3 seconds so users can enjoy their music and use the system quickly.

Google Play Store

The Google Play Store allows users to install Android apps via WiFi connection.

Steering Wheel Control Integration

The Dynavin system communicates perfectly with the multifunction steering wheel of your vehicle. This upgrade still allows you to control volume, telephone, track search (forward / backward) and other functions as usual. When a smartphone is connected to the system, you can even activate voice control such as “Siri” or “Google Assistant” via the steering wheel.

Compatible with all Shaker Sound Systems

The Dynavin Style systems are compatible with all of the factory Mustang Shaker Sound Systems.

DynaCarbon™️ AFTERMARKET Dynavin Mustang 2010-2014 Multimedia Radio Trim Kit

DynaPerformace and Dynavin North America teamed up to bring you the DynaCarbon™️ Carbon Fiber Overlay Trim Kit specifically for the Dynavin for Mustang 2010-2014! Click here to purchase from DynaPerformance! (We are not affiliated with DynaPerformance.)

Climate Control Display

Dynavin 9 gives you visual feedback for the driver and passenger temperatures, air conditioning status, heated seat status, air vents and more. You can also adjust fan direction through the air conditioning menu in cars that support this feature.

Backup Camera

The Dynavin is capable of integrating with the Mustang's factory reverse camera (Please note: required parts for factory camera integration are not included. Factory camera integration is not "plug-and-play". Click here for details.) You can also add an aftermarket front/reverse camera! You can see the dynamic guide lines in the reverse camera mode.

SiriusXM Satellite Radio Ready

Add the SiriusXM Connect Vehicle tuner (SiriusXM tuner sold separately) to listen to your SiriusXM subscription anytime, anywhere.

Integrated Bluetooth


The integrated Bluetooth module enables the wireless connection of a cell phone for hands-free communication. A very intuitive user interface makes it extremely easy to use and you can use the on-screen keyboard to search for contacts. Bluetooth also enables audio streaming from the phone.

Customizable Start Screen (Boot Logo)

With our own DynOS operating system, you have the option of changing the picture on the start screen and the logos of the stored radio stations.

 Dynaway GPS Navigation Software (pre-installed maps for North America)


No cell service? No problem! Always know where you are with GPS navigation with 3D view, online TMC* and TTS. Dynaway guarantees one free map update within 30 days of first use. Purchase and download the latest map data from flex.dynavin.com. 3 or 7 years of unlimited map data updates available for purchase at flex.dynavin.com. Additional map regions are also available for purchase.

Equalizer Presets

Extensive sound adjustment options to get the best out of your sound system and adjust to your preference. The built-in 16-band parametric EQ allows separate adjustment for the front and rear channels with professional-level precision.

Source Level Setting

In the source menu you can adjust the different volume levels for the various audio sources to your preference.

Fader and Balance

Simply drag the crosshairs on the touchscreen to the desired position on the illustration of the vehicle interior to set the fader balance and time correction.

SPECIFICATIONS

General
  • Android 11 OS with 4GB RAM and 64GB or 192GB storage capacity
  • Supports AHD backup cameras
  • Supports Dynavin 9 Heads-up Display (sold separately)
  • Power Output: 4 x 45 W High Power Amplifier
  • 3 Pre-Outs (3 V, Front / Rear / Subwoofer)
  • CANBUS Integration
  • Menu Language: English / German / French / Spanish / Portuguese / Dutch / Greek / Italian / Polish / Danish
  • Camera Connection & Built-in Controls for Dynavision Multi-View Cameras / compatible with factory camera with parts not included
  • Camera Guideline Adjustment
  • Rear-view Camera Display Automatic / Fast Boot-up
  • 16-band EQ
  • Auto Dimmer
  • Firmware Updatable
  • Engine Start-Stop unaffected

Display

  • Display: 9-inch (LVDS)
  • Resolution 1280 x 720 pixels (RGB)
  • Capacitive touch screen
  • Anti-reflective display
  • Working system: TFT active matrix
  • Active Area: 196.608(H) x 114.15(V) mm

Z-Link

  • Wireless and wired Apple CarPlay
  • Wired Android Auto
  • Smartphone screen-mirroring

Built-in Bluetooth

  • Integrated BT module
  • Included a compact digital dual microphone with a unique noise-canceling algorithm that ensures excellent call voice quality
  • Specification standard: 3.0sands2.1+EDR
  • -95dBm sensitivity, excellent anti-interference performance
  • Supports low-power scanning function
  • PBAP phonebook synchronization with 1000 entries
  • Hands-free function with HFP
  • Music streaming: A2DP (Advanced Audio Distribution Profile) compatible
  • Individual profile connection: hands-free function and music streaming
  • Phonebook: Automatic phonebook transfer
  • Supports dashboard display for caller alerts
  • Supports saving pairing information for multiple phones
  • Device name display
  • Call list: dialed number / received calls / missed calls
  • Speech volume setting: adjustable for incoming and outgoing calls
  • Microphone gain adjustable
  • Display of the GSM signal strength
  • Display of the battery charge level

USB

  • USB specification: USB 2.0, fast charging support
  • Audio playback (supported formats: APE/FLAC/M4A/MP3/WMA/WAV)
  • Video playback (supported formats: MPEG-4/AVI/FLV/MPEG/MPG/DAT/VOB/MKV)
  • Image browsing (supported formats: JPG/BMP/PNG/JPEG)
  • Playback mode: random play / single song loop / all loop / folder loop
  • Picture can be set as starting screen
  • Sync song album images
  • Draggable progress bar
  • Video playback speed x2/ x4
  • Memory playback progress
  • Supports dashboard display of songs/composers
  • Supports steering wheel to control up/down song/volume level
  • File / Folder name search
  • Supports up to 256 GB USB storage device

Sound Tuning

  • Maximum output power: 4 x 45 W
  • Adjustable subwoofer level
  • Subwoofer, Bass, Middle, Treble phase selectable
  • Equalizer Presets: Pop, Rock, Classical
  • 16-band parametric equalizer
  • Fader and balance
  • Digital time correction
  • Adjustable volume reduction when parking

Radio

  • FM frequency range: 87.5 – 108.0 MHz
  • AM frequency range: 530 – 1710 KHZ
  • FM Utility Sensitivity: 5-6 db
  • FM Stop Sensitivity: 22 db
  • AM stop sensitivity: 21 db
  • With left and right stereo channels
  • Signal to noise ratio: 56 db
  • Manual station storage for 15 stations
  • RDS functions: AF, TA, broadcast text
  • Automatic station tracking function
  • High Cut high frequency attenuation function
  • Support for changing FM/AM memory station pictures
  • Optional radio antenna power on/off

GPS Navigation Software

  • • Preinstalled Dynaway navigation software
    • Maps: North America
    • Online map update via flex.dynavin.com
    • Free map update within 30 days after first use
    • Additional map regions can be purchased at flex.dynavin.com

GPS

  • GPS antenna included
  • GPS reception frequency 1,575.42 ± 1 MHz
  • GPS reception sensitivity -165 dB max
  • Positioning accuracy: 10 m, 2D RMS
  • Data update rate: 1 HZ
  • Recapture time: 0.1 s on average

A2DP

  • BT audio streaming from cell phone
  • Display song title/lyrics/composer/vocalist
  • Steering wheel can control up/down song/volume level
  • Song title/lyrics can be displayed on the dashboard
