NEW! Dynavin 9 D9-MST2015H Plus Radio Navigation System for Ford Mustang 2015-2023 PREMIUM MODEL CAR

NEW! Dynavin 9 D9-MST2015H Plus Radio Navigation System for Ford Mustang 2015-2023 PREMIUM MODEL CAR

$ 799.99
show more images...

For FORD MUSTANG 2015-2023 (S550) PREMIUM MODEL audio systems.

Replaces the premium 8" factory screen with a 10" touchscreen! (For 4" factory screen models, click here.)

  • Plug and Play!
  • Premium 10.1" / 16:9 high resolution capacitive touchscreen (1280 x 720 pixels)
  • Android 11 OS with 4GB RAM
  • Select 64GB or 192GB storage capacity (for downloading additional apps or for file storage/music/media)
  • Apple CarPlay Wireless & Wired
  • Android Auto Wireless & Wired
  • Smartphone screen-mirroring
  • Customizable boot logo. Make any image your start up screen!
  • Integrates with the factory camera (factory camera plug-and-play adapters included) or install universal aftermarket backup/front cameras.
  • Google Play Store preinstalled. Connects to the internet via built-in WiFi module.
  • Supports steering wheel controls, air conditioning information on the screen, outside temperature on the display and the factory sound system. Integrated with parking sensors (if equipped).
  • Bluetooth for audio streaming and hands-free phone calls via smartphone (Android/Apple). External microphone included.
  • Maintains or improves sound quality! High quality sound processor compatible with all audio systems both factory and aftermarket including DSP. 16-band EQ, time correction, and more. FM RDS tuner with DSP noise-masking and 15 preset stations.
  • AV input/output for aftermarket subs/amps, etc.
  • We recommend this Flush Mount USB Extension for easy access to a USB port otherwise there are two 3ft USB extensions included to route to the glove compartment.
  • Replaces Sync (if-equipped) with Apple's Siri or Google Assistant (depending on your smartphone). Compatible with or without Sync.
  • SiriusXM compatible with SXV300 Tuner (plug-and-play) sold separately (does not integrate with factory SiriusXM).
  • Dynaway GPS navigation software pre-installed (maps for North America)
  • Periodic firmware updates available here
  • One year warranty through Dynavin North America - Fresno, CA

Install Video

FEATURES

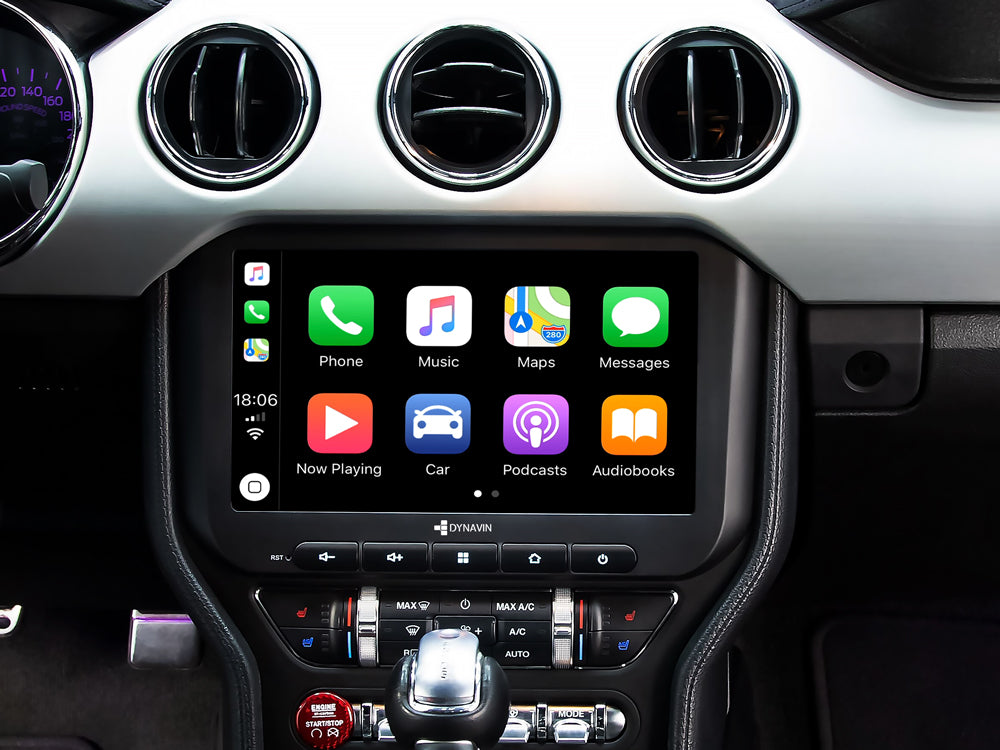

Apple CarPlay

With Apple CarPlay, iPhone users have an incredibly intuitive solution on board to make calls, use maps, listen to music and use messages with just a word or the touch of a button. You can enjoy Spotify, internet radio, or podcasts while still concentrating on the road. Dynavin 9 supports wireless and wired Apple CarPlay and screen-mirroring.

For a list of compatible Apple CarPlay apps, visit: https://www.apple.com/ios/carplay/

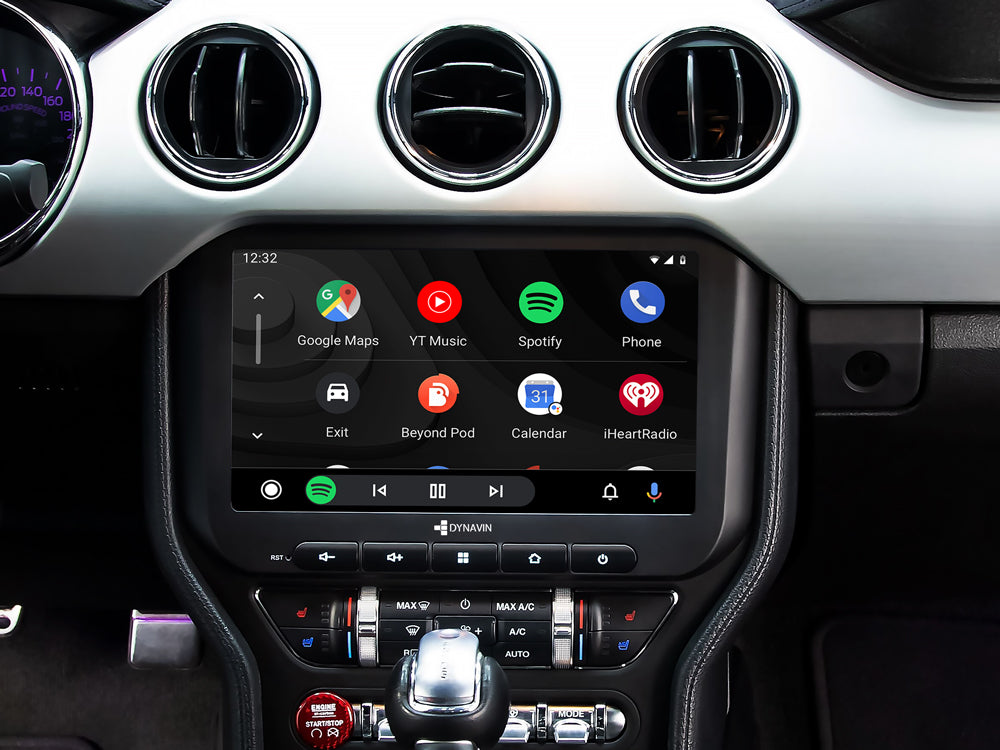

Android Auto


Android Auto is a mobile app made by Google that connects your Android phone to your car's touchscreen display allowing you to use your Android phone while driving without having to pick it up. With Android Auto, Android users have an incredibly intuitive solution to make calls, use maps, listen to music, and use messages with just a word or touch of a button. Dynavin 9 supports wired Android Auto and screen-mirroring.

For Android Auto apps, visit: https://www.android.com/auto/

Fast Boot

The Dynavin 9 fast boot features allows the radio system to boot in 3 seconds so users can enjoy their music and use the system quickly.

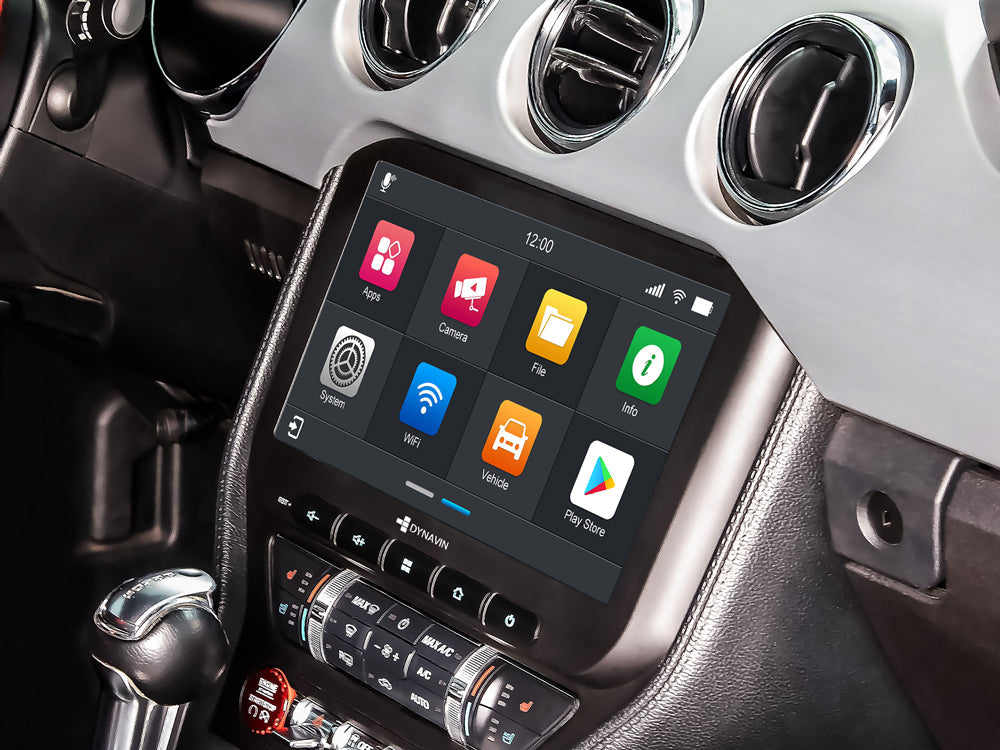

Google Play Store

The Google Play Store allows users to install Android apps via WiFi connection.

Steering Wheel Control Integration

The Dynavin system communicates perfectly with the multifunction steering wheel of your vehicle. This upgrade still allows you to control volume, telephone, track search (forward / backward) and other functions as usual. When a smartphone is connected to the system, you can even activate voice control such as “Siri” or “Google Assistant” via the steering wheel.

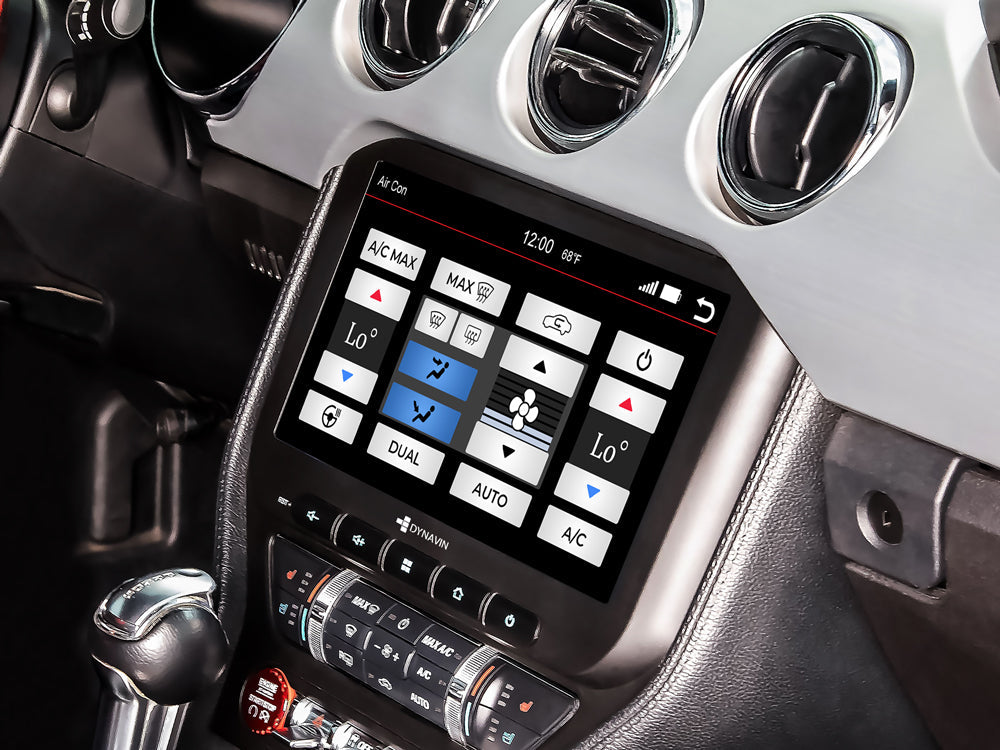

Climate Control Display

Visual feedback for the driver and passenger temperatures, air conditioning status, heated seat status, air vents and more. You can also adjust fan direction through the air conditioning menu in cars that support this feature.

Backup Camera

Integrates with your Mustang's factory reverse camera (if equipped). Factory camera adapters are included (plug-and-play)! You can see the dynamic guide lines in the reverse camera mode. Or add an aftermarket camera!

Factory HVAC Retention

The Dynavin Mustang radio retains the car's original HVAC buttons.

SiriusXM Satellite Radio Ready

Add the SiriusXM Connect Vehicle tuner (SiriusXM tuner sold separately) to listen to your SiriusXM subscription anytime, anywhere.

Integrated Bluetooth


The integrated Bluetooth module enables the wireless connection of a cell phone for hands-free communication. A very intuitive user interface makes it extremely easy to use and you can use the on-screen keyboard to search for contacts. Bluetooth also enables audio streaming from the phone.

Customizable Start Screen (Boot Logo)

With our own DynOS operating system, you have the option of changing the picture on the start screen and the logos of the stored AM/FM radio stations.

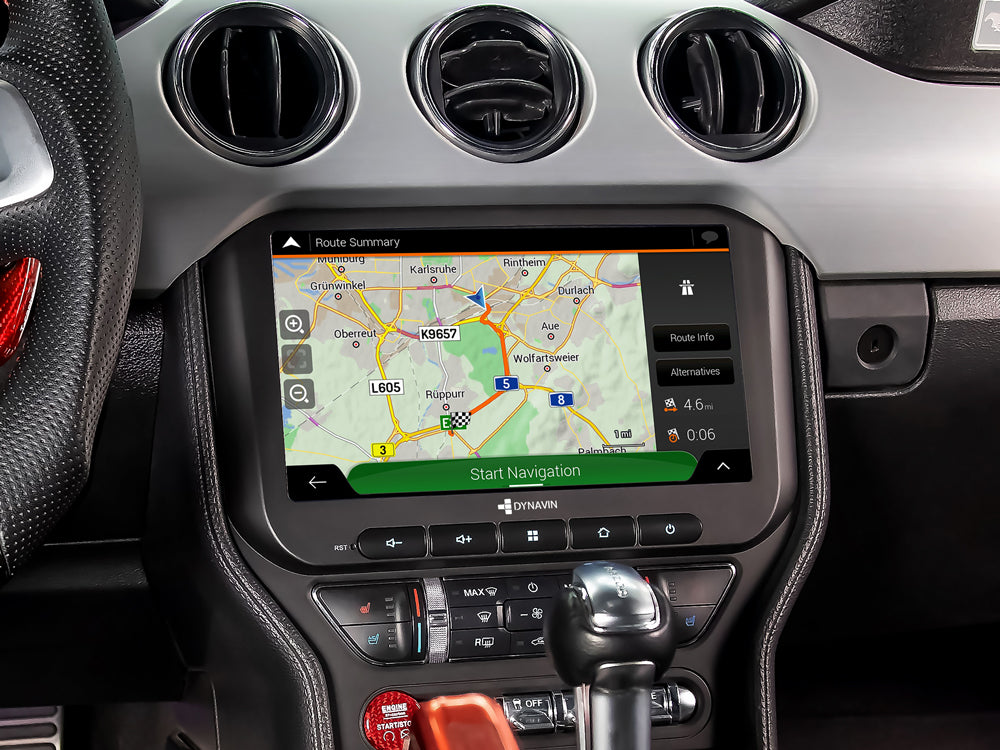

Dynaway GPS Navigation Software (pre-installed maps for North America)

No cell service? No problem! Always know where you are with GPS navigation with 3D view, online TMC* and TTS. Dynaway guarantees one free map update within 30 days of first use. Purchase and download the latest map data from flex.dynavin.com. 3 or 7 years of unlimited map data updates available for purchase at flex.dynavin.com. Additional map regions are also available for purchase.

Equalizer Presets

Extensive sound adjustment options to get the best out of your sound system and adjust to your preference. The built-in 16-band parametric EQ allows separate adjustment for the front and rear channels with professional-level precision.

Source Level Setting

In the source menu you can adjust the different volume levels for the various audio sources to your preference.

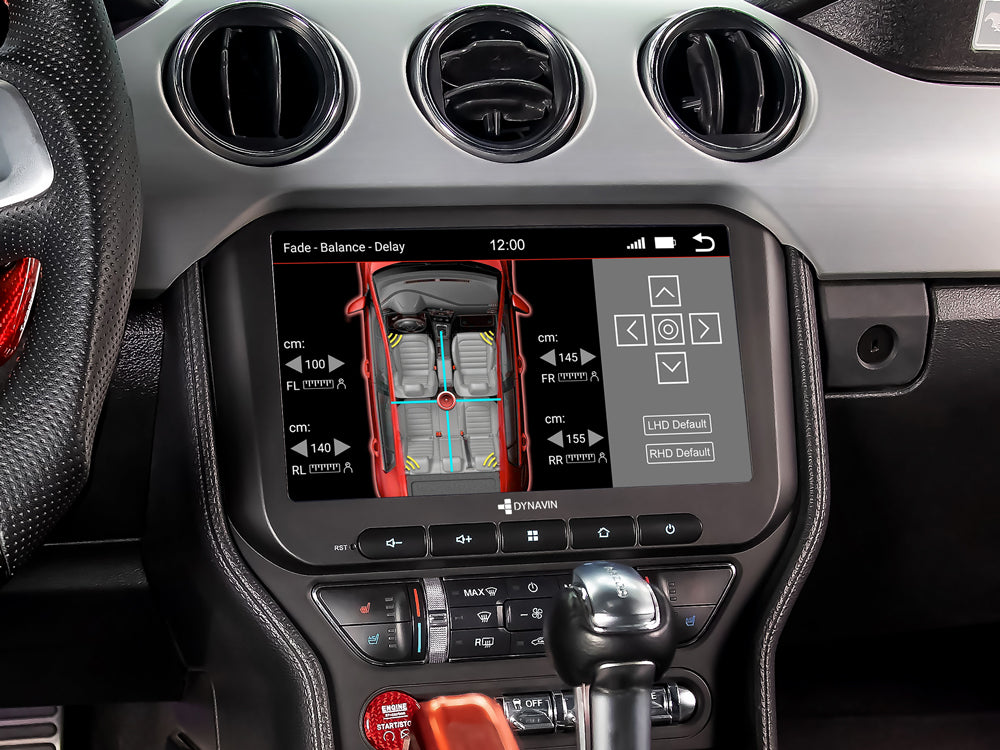

Fader and Balance

Simply drag the crosshairs on the touchscreen to the desired position on the illustration of the vehicle interior to set the fader balance and time correction.

SPECIFICATIONS

General
  • Android 11 OS with 4GB RAM and 64GB or 192GB storage capacity
  • Supports AHD backup cameras
  • Supports Dynavin 9 Heads-up Display (sold separately)
  • Power Output: 4 x 45 W High Power Amplifier
  • 3 Pre-Outs (3 V, Front / Rear / Subwoofer)
  • CANBUS Integration
  • Menu Language: English / German / French / Spanish / Portuguese / Dutch / Greek / Italian / Polish / Danish
  • Camera Connection & Built-in Controls for Dynavision Multi-View Cameras / compatible with factory camera
  • Camera Guideline Adjustment
  • Rear-view Camera Display Automatic / Fast Boot-up
  • 16-band EQ
  • Auto Dimmer
  • Firmware Updatable
  • Engine Start-Stop unaffected

Screen

  • Display: 10.1-inch (LVDS)
  • Resolution 1280 x 720 pixels (RGB)
  • Capacitive touch screen
  • Anti-reflection display
  • Working system: TFT Active Matrix
  • Active area: 222.72 (H) x 125.28 (V) mm

Z-Link

  • Wireless and wired Apple CarPlay
  • Wired Android Auto
  • Smartphone screen-mirroring

Built-in Bluetooth

  • Integrated BT module
  • Included a compact digital dual microphone with a unique noise-canceling algorithm that ensures excellent call voice quality
  • Specification standard: 3.0sands2.1+EDR
  • -95dBm sensitivity, excellent anti-interference performance
  • Supports low-power scanning function
  • PBAP phonebook synchronization with 1000 entries
  • Hands-free function with HFP
  • Music streaming: A2DP (Advanced Audio Distribution Profile) compatible
  • Individual profile connection: hands-free function and music streaming
  • Phonebook: Automatic phonebook transfer
  • Supports dashboard display for caller alerts
  • Supports saving pairing information for multiple phones
  • Device name display
  • Call list: dialed number / received calls / missed calls
  • Speech volume setting: adjustable for incoming and outgoing calls
  • Microphone gain adjustable
  • Display of the GSM signal strength
  • Display of the battery charge level

USB

  • USB specification: USB 2.0, fast charging support
  • Audio playback (supported formats: APE/FLAC/M4A/MP3/WMA/WAV)
  • Video playback (supported formats: MPEG-4/AVI/FLV/MPEG/MPG/DAT/VOB/MKV)
  • Image browsing (supported formats: JPG/BMP/PNG/JPEG)
  • Playback mode: random play / single song loop / all loop / folder loop
  • Picture can be set as starting screen
  • Sync song album images
  • Draggable progress bar
  • Video playback speed x2/ x4
  • Memory playback progress
  • Supports dashboard display of songs/composers
  • Supports steering wheel to control up/down song/volume level
  • File / Folder name search
  • Supports up to 256 GB USB storage device

Sound Tuning

  • Maximum output power: 4 x 45 W
  • Adjustable subwoofer level
  • Subwoofer, Bass, Middle, Treble phase selectable
  • Equalizer Presets: Pop, Rock, Classical
  • 16-band parametric equalizer
  • Fader and balance
  • Digital time correction

Radio

  • FM frequency range: 87.5 – 108.0 MHz
  • AM frequency range: 530 – 1710 KHZ
  • FM Utility Sensitivity: 5-6 db
  • FM Stop Sensitivity: 22 db
  • AM stop sensitivity: 21 db
  • With left and right stereo channels
  • Signal to noise ratio: 56 db
  • Manual station storage for 15 stations
  • RDS functions: AF, TA, broadcast text
  • Automatic station tracking function
  • High Cut high frequency attenuation function
  • Support for changing FM/AM memory station pictures
  • Optional radio antenna power on/off

GPS Navigation Software

  • Preinstalled Dynaway navigation software
  • Maps: North America
  • Online map update via flex.dynavin.com
  • Free map update within 30 days after first use
  • Additional map regions can be purchased at flex.dynavin.com

GPS

  • GPS antenna included
  • GPS reception frequency 1,575.42 ± 1 MHz
  • GPS reception sensitivity -165 dB max
  • Positioning accuracy: 10 m, 2D RMS
  • Data update rate: 1 HZ
  • Recapture time: 0.1 s on average

A2DP

  • BT audio streaming from cell phone
  • Display song title/lyrics/composer/vocalist
  • Steering wheel can control up/down song/volume level
  • Song title/lyrics can be displayed on the dashboard
